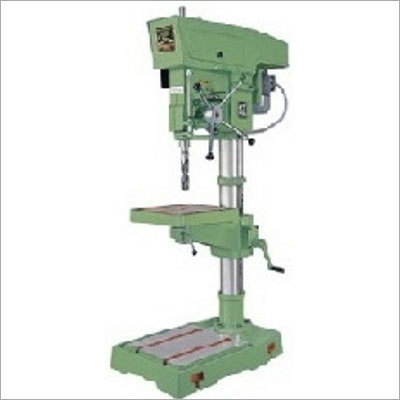

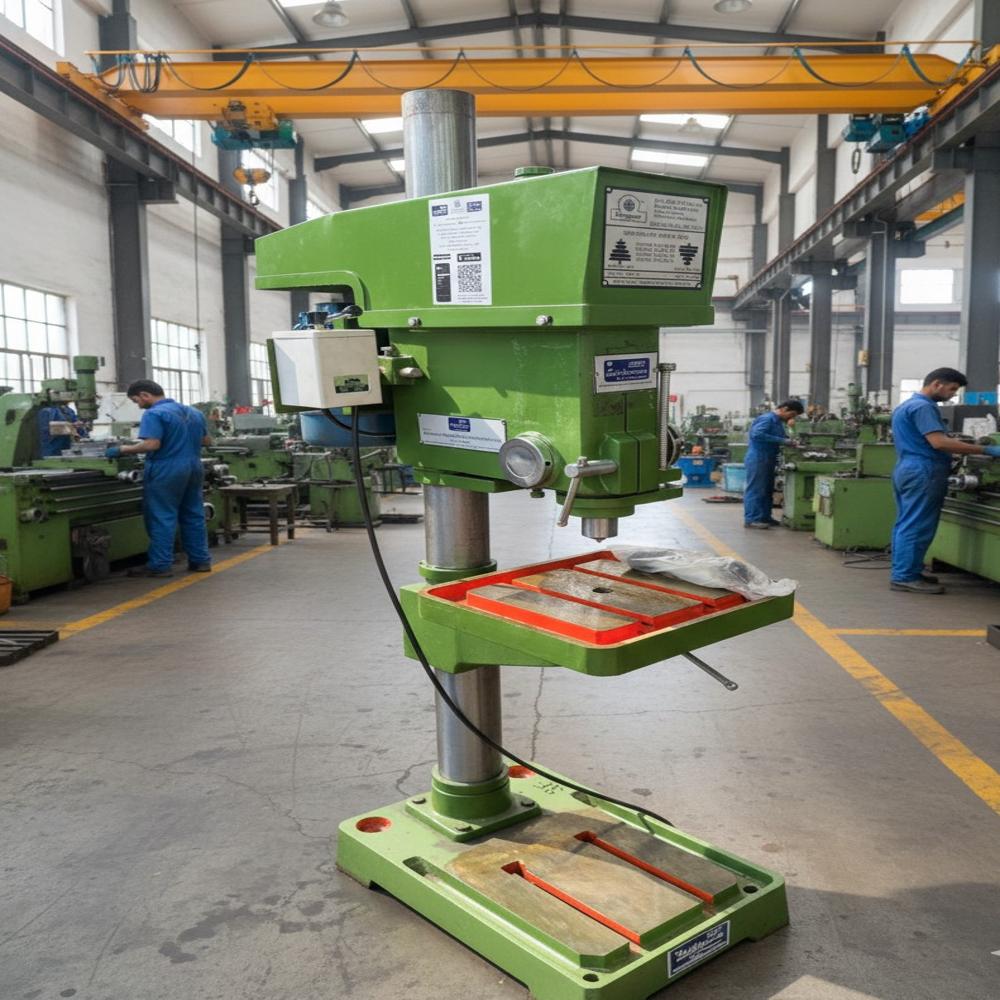

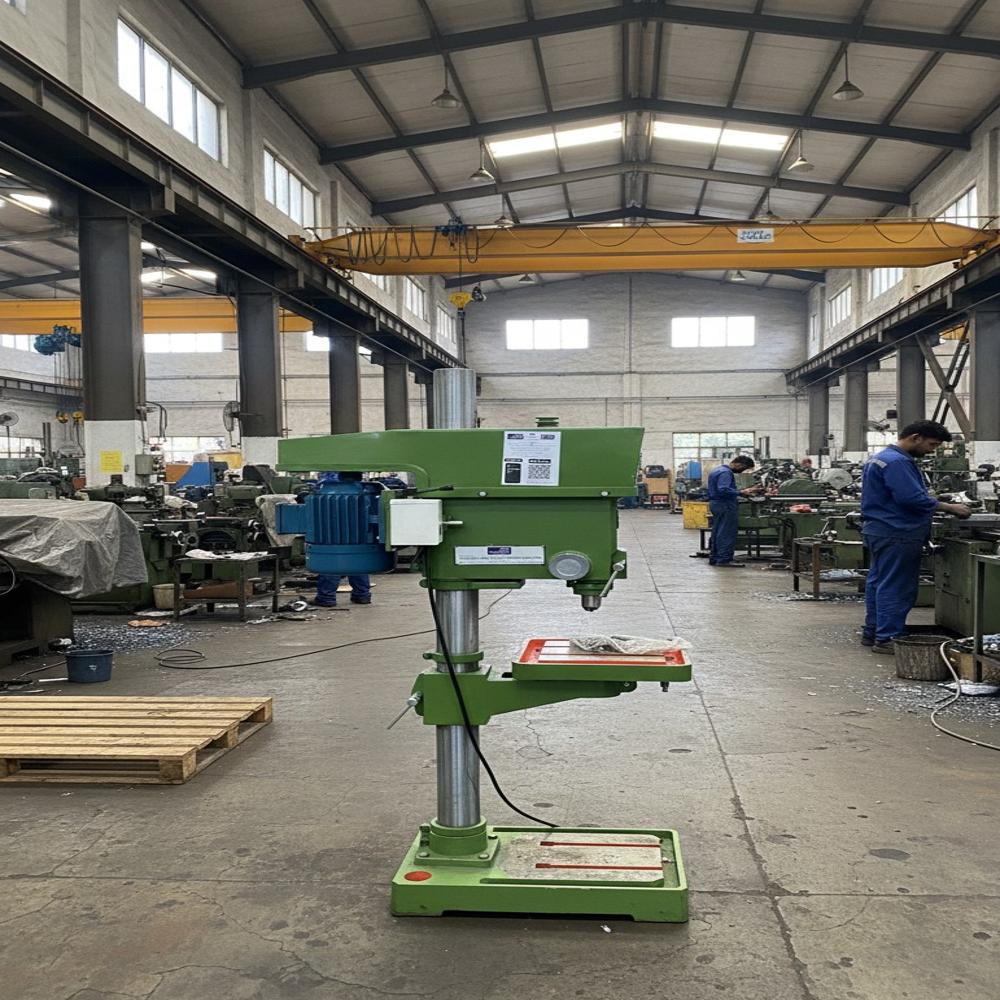

      19mm cap Bench Pillar Drilling Machine

      19mm cap Bench Pillar Drilling Machine
      19mm cap Bench Pillar Drilling Machine
      Product Code : SSC-P-4
      Brand Name : SIDDHAPURA
      Price And Quantity
      • Minimum Order Quantity
      • 1
      • Unit of Measure
      • Unit/Units
      • Minimum Order Quantity
      Trade Information
      • Payment Terms
      • Cash Against Delivery (CAD), Cash on Delivery (COD), Cash Advance (CA), Cash in Advance (CID), Cheque
      • Packaging Details
      • GUNNY PACKING OR WOODEN CASE
      • Main Export Market(s)
      • Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
      Product Description

      19mm cap Bench Pillar Drilling Machine



      Technical Specification :

      Model No.

      SEW / P-4

      SEW / P-5

      Drilling Cap. (in steel)

      19 mm

      19 mm

      Column Dia.

      74.35 mm

      74.35 mm

      Centre of Spindle to table

      200 mm

      200 mm

      Max, Spindle to table

      500/700 mm

      210/405 mm

      Max, Spindle to base

      925 mm

      640 mm

      Taper in spindle

      M.T. -2

      M.T. -2

      Spindle Travel

      125 mm

      125 mm

      No. of speed/range

      8/87 to 3200 RPM

      8/87 to 3200 RPM

      Table size

      260 X 260 mm

      260 X 260 mm

      Base size (machined area)

      260 X 235 mm

      260 X 235 mm

      Overall base size

      480 X 300 mm

      480 X 300 mm

      Overall height with guard

      1475 mm

      1170 mm

      V-Belt selection

      A-42

      A-42

      Elec. Motor-1440 RPm

      0.50 H.P.

      0.50 H.P.

      Wooden Case Size LXWXH

      700 X 400 X 1600 mm

      700 X 400 X 1300 mm
