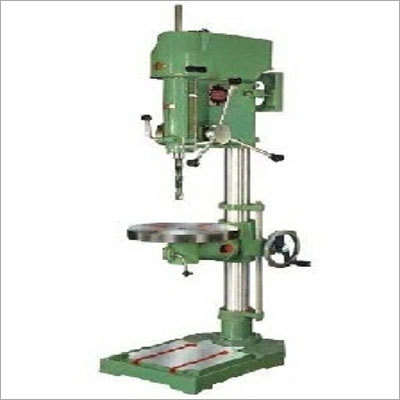

          25mm cap Fine Feed Pillar Drilling Machine

          25mm cap Fine Feed Pillar Drilling Machine
          25mm cap Fine Feed Pillar Drilling Machine
          Send Inquiry
          Product Code : SSC-P-1
          Brand Name : SIDDHAPURA
          Product Description



          25mm cap Fine Feed Pillar Drilling Machine



                                       We are considered as one of the leading manufacturers and suppliers of an eminent array of 25mm cap Fine Feed Pillar Drilling Machinee that is offered in various customized designs to meet the application requirements of our clients. This machine is highly accepted by our clients for its long lasting performance, rugged construction and low maintenance. This 25mm cap Fine Feed Pillar Drilling Machinee is manufactured by our adroit professionals using the best grade raw materials and advanced technology in order to meet the set industry quality standards.

          Technical Specifications:



          Model No.

          SEW / P-1

          Drilling Cap. (in steel)

          25 mm

          Column Dia.

          87.60 mm

          Centre of Spindle to table

          250 mm

          Max, Spindle to table

          600 mm

          Max, Spindle to base

          980 mm

          Taper in spindle

          M.T.3

          Spindle Travel

          250 mm

          No. of speed

          8

          Range of Speed

          73 to 1800 RPM

          Table size

          375 mm Dia.

          Base size (machined area)

          350 X 325 mm

          Overall base size

          625 X 420 mm

          Overall height with guard

          1675 mm

          V-Belt selection

          B-52

          Elec. Motor-1440 RPm

          1 H.P.

          Wooden Case Size

          650 X 500 X 1525 mm
