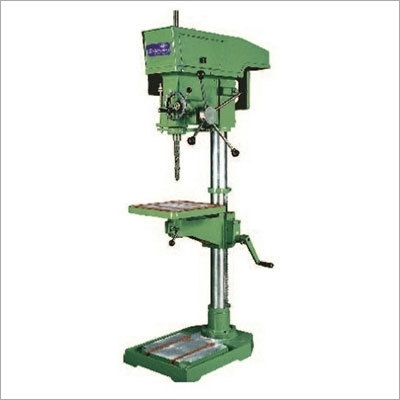

      25mm cap Fine Feed Pillar Drilling Machine

      25mm cap Fine Feed Pillar Drilling Machine

      40000-45000 INR/Piece

      Product Details:

      • Table Size 330 X 330
      • Dimension(L*W*H) 950 X 500 X 1525 Millimeter (mm)
      • Spindle Speed 73-1800 RPM
      • Product Type 25mm pillar drilling machine
      • Computerized No
      • CNC Or Not Normal
      • Weight (kg) 200 Kilograms (kg)
      • Supply Ability : 10 Piece Per Week
      • Click to view more
      X

      Price And Quantity

      • 1 Piece
      • 40000-45000 INR/Piece

      Product Specifications

      • GREEN
      • 25mm pillar drilling machine
      • 25
      • Normal
      • No
      • 73-1800 RPM
      • 950 X 500 X 1525 Millimeter (mm)
      • 200 Kilograms (kg)
      • 330 X 330

      Trade Information

      • 10 Piece Per Week
      • 1 Week
      • GUNNY PACKING OR WOODEN CASE
      • Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
      • All India
      • ISO 9001 : 2015,NSIC,CE CERTIFICATE

      Product Description

      Pillar Drilling Machine SSC-S-25
      Technical Specification :
      Model No. SSC-S-25
      Drilling Cap. (in steel) 25 mm
      Column Dia. 87.60 mm
      Centre of Spindle to table 255 mm
      Max, Spindle to table 650 mm
      Max, Spindle to base 1050 mm
      Taper in spindle M.T.3
      Spindle Travel 185 mm
      No. of speed 8
      Range of Speed 73 to 1800 RPM
      Table size 345 X 345mm Dia.
      Base size (machined area) 350 X 325 mm
      Overall base size 625 X 420 mm
      Overall height with guard 1675 mm
      V-Belt selection B-52
      Elec. Motor-1440 RPm 1 H.P.
      Wooden Case Size 950 X 500 X 1525 mm
