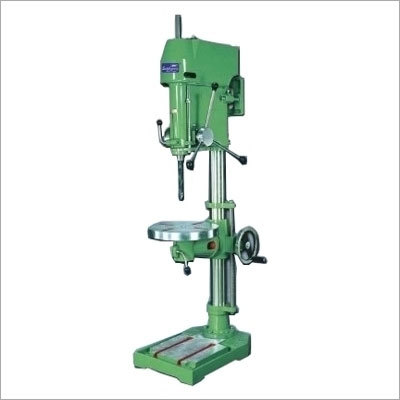

25MM CAP PILLAR DRILLING MACHINE

Model No.

SEW / P-1

Drilling Cap. (in steel)

25 mm

Column Dia.

87.60 mm

Centre of Spindle to table

250 mm

Max, Spindle to table

600 mm

Max, Spindle to base

980 mm

Taper in spindle

M.T.3

Spindle Travel

250 mm

No. of speed

8

Range of Speed

73 to 1800 RPM

Table size

375 mm Dia.

Base size (machined area)

350 X 325 mm

Overall base size

625 X 420 mm

Overall height with guard

1675 mm

V-Belt selection

B-52

Elec. Motor-1440 RPm

1 H.P.

Wooden Case Size

650 X 500 X 1525 mm
