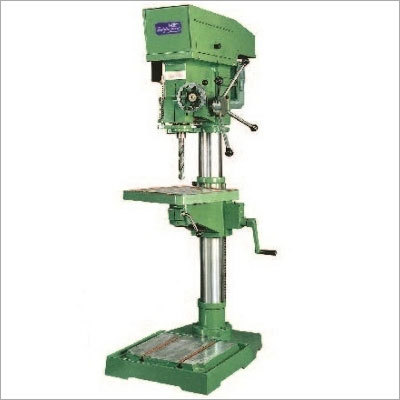

      32mm cap Pillar Drilling Machine

      32mm cap Pillar Drilling Machine
      32mm cap Pillar Drilling Machine
      Send Inquiry
      Product Code : SSC-4
      Brand Name : SIDDHAPURA
      Price And Quantity
      • Minimum Order Quantity
      • 1
      • Unit of Measure
      • Unit/Units
      Product Specifications
      • Condition
      • New
      • Spindle Speed
      • 75 / 2070 RPM
      • Table Size
      • 390 x 390 mm
      • Product Type
      • Pillar Drilling Machine
      • Automatic Grade
      • Manual
      • Power Source
      • Electric
      • Color
      • Green
      Product Description



      32mm cap Pillar Drilling Machine

      Technical Specification :

      Machine Capacity

      32 mm

      Column Diameter

      114 mm

      Centre of Spindle to Column

      280 mm

      Distance Spindle to Table

      625 mm

      Distance Spindle to Base

      1045 mm

      Spindle Nose

      MT - 3

      Spindle Travel

      170 mm

      Range of Spindle Speed

      75 / 2070 RPM

      No. of Spindle Speed

      8

      Range of power feed

      Manual

      Table size

      390 x 390 mm

      Base size (machined area)

      390 x 390 mm

      V-Belt Section

      B - 58

      Overall Height with guard

      1745 mm

      Main Electrical Motor

      1.5 HP

      Wooden Case L x W x H

      1050 x 600 x 1900 mm




      Trade Information
      • Payment Terms
      • Cash on Delivery (COD), Cash Advance (CA), Telegraphic Transfer (T/T), Delivery Point (DP), Days after Acceptance (DA), Cash Against Delivery (CAD), Cash in Advance (CID), Cheque
      • Supply Ability
      • as per customer requirement Per Week
      • Delivery Time
      • 1 Week
      • Packaging Details
      • GUNNY PACKING OR WOODEN CASE
      • Main Export Market(s)
      • Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
      • Main Domestic Market
      • All India
      • Certifications
      • ISO 9001 : 2015,NSIC,CE CERTIFICATE
