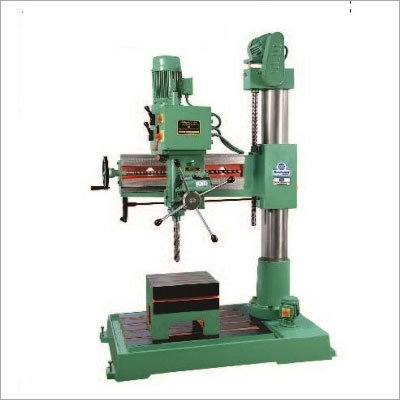

          40Mm Cap Fine Feed Radial Drilling Machine

          40Mm Cap Fine Feed Radial Drilling Machine
          40Mm Cap Fine Feed Radial Drilling Machine
          Send Inquiry
          Product Code : SMTR-III G A/F
          Brand Name : SIDDHAPURA
          Price And Quantity
          • Minimum Order Quantity
          • 1
          • Unit of Measure
          • Unit/Units
          Product Description

          40MM CAP FINE FEED RADIAL DRILLING MACHINE

          Specification SMTR-III G/A

          Drilling Capacity   - 38mm to 40mm

          DRILL HEAD

          1.Spindle Nose - MT-4

          2.Spindle Travel - 220

          3.No of Spindle - 8

          4.Range of Spindle Speed(RPM) - 90 to 1000RPM

          5.Range of Power Feed - (2) 0.20-0.10

          POWER

          1.Main Motor (1.5 HP )  - 1400KW/RPM 1.55/2800 KW/RPM

          2.Arm Elevating Motor (0.5 HP) - A-23 V-Belt

          WORKING TABLE

          L x W x H  - 380 x 300 x 300

          WORKING RANGE

          1.Drilling Radius Max./Min. - 895/440

          2.Max./Min.Dist.Column to Spindle - 850/275

          3. Max.Drill Head Drive - 450

          4.Max./Min. Base Plate to Spindle -930/230

          5.Diameter of Column -168

          BASE PLATE

          L x W x H -760 x 1250 x 150

          Working  Surface -820 x 610

          No. of T-Slot  -4

          DIMENSION

          Overall Height 2000

          Wooden Case(L x W x H) -1250 x 1550 x 2000



          Trade Information
          • Payment Terms
          • Cash Against Delivery (CAD), Cash in Advance (CID), Cheque
          • Packaging Details
          • GUNNY PACKING OR WOODEN CASE
          • Main Export Market(s)
          • Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
