      Home » Products » Drilling Cum Milling Machine » 40mm cap Pillar Drilling Cum Milling Machine

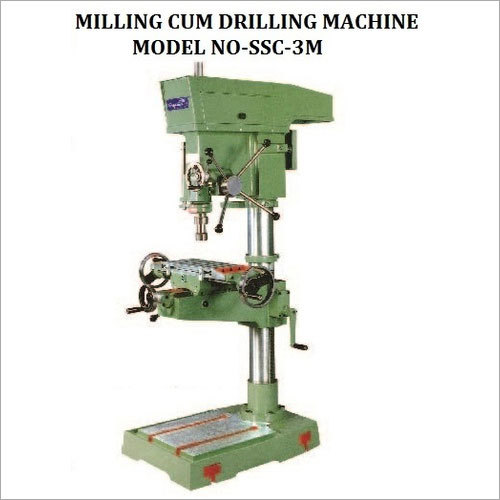

      40mm cap Pillar Drilling Cum Milling Machine

      40mm cap Pillar Drilling Cum Milling Machine
      40mm cap Pillar Drilling Cum Milling Machine
      Product Code : SSC-3M
      Brand Name : SIDDHAPURA
      Price And Quantity
      • Minimum Order Quantity
      • 1
      • Unit of Measure
      • Unit/Units
      • Minimum Order Quantity
      Trade Information
      • Payment Terms
      • Cash Against Delivery (CAD), Cash on Delivery (COD), Cash Advance (CA), Cash in Advance (CID), Cheque
      • Packaging Details
      • GUNNY PACKING OR WOODEN CASE
      • Main Export Market(s)
      • Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa, Asia
      Product Description

      40mm cap Pillar Drilling Cum Milling Machine

      Technical Specification :

      In : Drilling

      40 mm

      Cast : Face Mill

      100 mm

      Iron : End Mill

      25 mm

      Iron : Tapping

      22 mm

      In Mild Steel Drilling

      35 mm

      Column Diameter

      130 mm

      Swing

      610

      Working surface

      435 x 200 mm

      Longitudinal Travel Manual

      325 mm

      Cross Travel

      250 mm

      Vertical Travel

      400 mm

      Quill Travel

      220 mm

      Spindle Taper

      MT - 4

      Range of Spindle Speed

      75 to 2070 RPM

      No. Of Spindle Speed

      8

      Distance Spindle to Base

      940 mm

      Base Size (Machine Area)

      490 x 470 mm

      Overall Height With Guard

      1830 mm

      Main Electrical Motor

      1.5 HP

      V - Belt Section

      B - 62

      Wooden Case (L x W x H)

      1140 x 800 x 1950 mm
