          ssc sm 25

          ssc sm 25
          ssc sm 25
          Send Inquiry
          Product Code : SSC SM 25
          Product Description

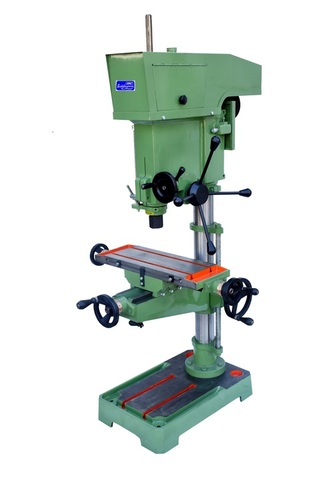

          25 mm cap Pillar Drilling Machine


          ITEM

           SSC SM 25

          Tilte  working table

          FIXED

          Drilling capacity

          25mm

          Pillar Diameter

          92 mm

          Spindle nose to table distance

          650 mm

          Distance from spindle nose to base distance

          1060 mm

          Distance from spindle centre to pillar surface

          250 mm

          Table travel

          420 mm

          Taper in spindle

          MT-4

          Number of speed

          8 Speed

          Range of Speed

          75 to 1970

          Table size ( in mm )

          330x 330

          Base size (m/c area in mm)

          365x 580

          Over all base size (in mm)

          370 x 585

          Spindle travel

          240 mm

          Pillar  length

          1410 mm

          Over all height with pulley guard

          1730 mm

          v-belt secton

          B-52”

          Weight (Approx.)

          220 TO 230

          Motor 1440 RPM 3 Phase 440 Volts

          1 H.P.

          Shipping wooden case inner size L x W x H

          850x450x1770 mm
