Siddhapura is the brand in the drill machines tools. we siddhapura are the reputed manufacturing company providing high end precision drilling machines across the glob. our pillar drill machines and radial drill machines have the unique features and best in class quality machines.
we offer 40 mm capacity pillar drill machines to our client for varies applications in a large industrial domains. made with the premium quality raw materials and under supervision of experienced technical team, this industrial pillar drill machines manufatured
here is the functional specifications of pillar drilling machines

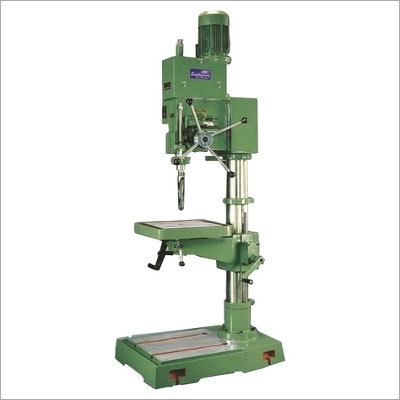

40mm cap All Geared Pillar Drilling Machines
Technical Specification :
Machine Capacity | 40 mm |
Column Diameter | 130 mm |
Centre of Spindle to Column | 305 mm |
Distance Spindle to table | 515 mm |
Distance Spindle to base | 1040 mm |
Spindle Nose | MT - 4 |
Spindle Travel | 215 mm |
Range of Spindle Speed | 90/1000 RPM |
No. of Spindle Speed | 8 |
Table size | 435 x 435 mm |
Base size (machined area) | 490 x 470 mm |
Overall Height with guard | 2130 mm |
Main Electrical Motor | 2 speed : 1.75/2.5 H.P. |
Wooden Case L x W x H (approx) | 925 x 650 x 2330 mm |
![]() |
