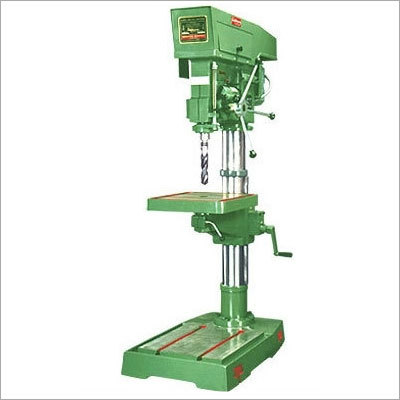

40mm Cap Auto Feed Pillar Drilling Machine

100000-105000 INR/Piece

Get a Price/Quote

Product Details:

Table Size Table size:435 x 435 mm
Condition New
Spindle Speed 75 / 2070 RPM
Product Type Cap Auto Feed Pillar Drilling Machine
Material Mild steel
Automatic Grade Automatic
Power 1.5 Horsepower (HP)
Click to View more

Request to Call Back Send Inquiry

Product Details
Product Description

Price And Quantity

Price 100000-105000 INR/Piece
Minimum Order Quantity 1 Unit

Product Specifications

Automatic Grade Automatic
Color Green
Power 1.5 Horsepower (HP)
Power Source Electric
Spindle Speed 75 / 2070 RPM
Condition New
Table Size Table size:435 x 435 mm
Product Type Cap Auto Feed Pillar Drilling Machine
Material Mild steel

Trade Information

Payment Terms Cheque, Cash Against Delivery (CAD), Cash in Advance (CID)
Supply Ability 10 Unit Per Week
Delivery Time 1 Week
Packaging Details GUNNY PACKING OR WOODEN CASE
Main Export Market(s) South America, Western Europe, Middle East, Africa, Central America, Asia, Eastern Europe, North America, Australia
Main Domestic Market All India
Certifications ISO 9001 : 2015,NSIC,CE CERTIFICATE

Product Description

Auto Feed Pillar Drilling Machine-40mm cap

Technical Specification

Machine Capacity:40 mm
Column Diameter:130 mm
Centre of Spindle to Column:305 mm
Distance Spindle to Table:515 mm
Distance Spindle to Base:1040 mm
Spindle Nose:MT - 4
Spindle Travel:215 mm
Range of Spindle Speed:75 / 2070 RPM
No. of Spindle Speed:8
Range of power feed:(2) 0.08 0.04
Table size:435 x 435 mm
Base size (machined area):490 x 470 mm
V-Belt Section:B - 62
Overall Height with guard:1830 mm
Main Electrical Motor:1.5 HP
Wooden Case L x W x H:1140 x 650 x 1950 mm

Enter Buying Requirement Details

+ Add Attachment

Email Id

Mobile number

Please Wait...

Other Products in 'Auto Feed Pillar Drilling Machine' category

19mm Cap Auto Feed Pillar Drilling Machine Power Source : Electric Minimum Order Quantity : 1 Condition : New Product Type : Cap Auto Feed Pillar Drilling Machine Material : Mild Steel Automatic Grade : Automatic Color : Green Price : 1800023000 INR/Piece Table Size : 260 X 260 mm Spindle Speed : 8/87 to 3200 RPM

Send Inquiry

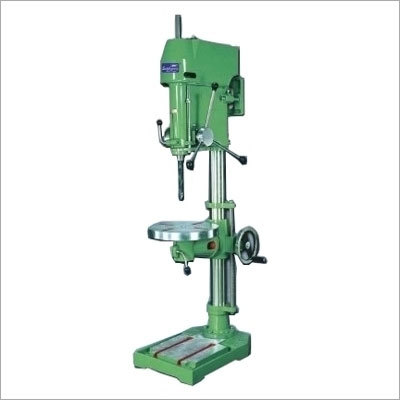

Cap Pillar Drilling Machine Power Source : Electric Minimum Order Quantity : 1 Condition : New Product Type : Cap Pillar Drilling Machine Material : Mild Steel Automatic Grade : Automatic Color : Green Price : 4000045000 INR/Piece Table Size : 75 mm Dia. Spindle Speed : 73 to 1800 RPM Power : 1 Horsepower (HP)
