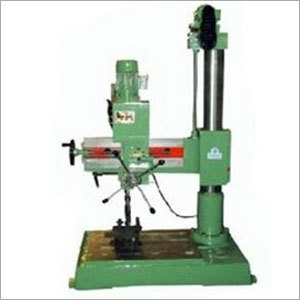

38mm cap Auto Feed Radial Drilling

38mm cap Auto/Fine Feed Radial Drilling

Specification SMTR-III G/A :

Drilling Capacity   - 38mm to 40mm

DRILL HEAD

1.Spindle Nose - MT-4

2.Spindle Travel - 220

3.No of Spindle - 8

4.Range of Spindle Speed(RPM) - 90 to 1000RPM

5.Range of Power Feed - (2) 0.20-0.10

POWER

1.Main Motor (1.5 HP )  - 1400KW/RPM 1.55/2800 KW/RPM

2.Arm Elevating Motor (0.5 HP) - A-23 V-Belt

WORKING TABLE

L x W x H  - 380 x 300 x 300

WORKING RANGE

1.Drilling Radius Max./Min. - 895/440

2.Max./Min.Dist.Column to Spindle - 850/275

3. Max.Drill Head Drive - 450

4.Max./Min. Base Plate to Spindle -930/230

5.Diameter of Column -168

BASE PLATE

L x W x H -760 x 1250 x 150

Working  Surface -820 x 610

No. of T-Slot  -4

DIMENSION

Overall Height 2000

Wooden Case(L x W x H) -1250 x 1550 x 2000

Overall Dimension are in mm and approximate only 75842
