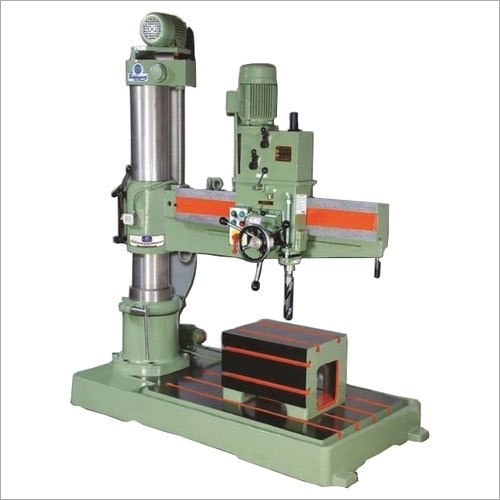

          40mm cap Geared Radial Drilling Machine

          40mm cap Geared Radial Drilling Machine
          40mm cap Geared Radial Drilling Machine
          Send Inquiry
          Product Code : SSC-40/1200
          Brand Name : SIDDHAPURA
          Price And Quantity
          • Minimum Order Quantity
          • 1
          • Unit of Measure
          • Unit/Units
          Product Description

          40mm cap Geared Radial Drilling Machine

          Technical Specification:

          Drill Capacity 40 mm
          Drill Head :
          1. Spindle nose MT 4
          2. Spindle Travel 175
          3. No. of Spindle Speed 8
          4. Range of Spindle Speed 90-1000 RPM
          5. No. of Power feed (2)
          6. Power feed Range 0-20-0.10
          mm/Rev

          Working Range :
          1. Drilling Radius Max./Min. 1125 - 505
          2. Distance from column to Spindle Max./Min. 1020 - 400
          3. Distance from Spindle to Base Max./Min. 1180 - 380
          4. Diametere of Column 210
          5. Vertical Power Movement of Arm. 800
          6. Horizontal Movement of Drilling Head 635
          5. Box Table Size (L x W x H) 510 x 380 x 355

          Base Plate :
          1. L x W x H 1625 x 850 x
          180
          2. Working Surface 1010 x 690
          3. No. of T-Slots 3/ 16
          Power : V. Belt
          Drilling Motor 1.5/1400
          KW/RPM 1.5/2800
          KW/RPM
          Arm Elevating Motor
          .75/1440
          KW/RPM
          Shapping Size (Approx.) L x W x H 1750 x 1000 x 200


          Trade Information
          • Payment Terms
          • Cash Against Delivery (CAD), Cash in Advance (CID), Cheque
          • Packaging Details
          • gunny packing or wooden case
          • Main Export Market(s)
          • Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
