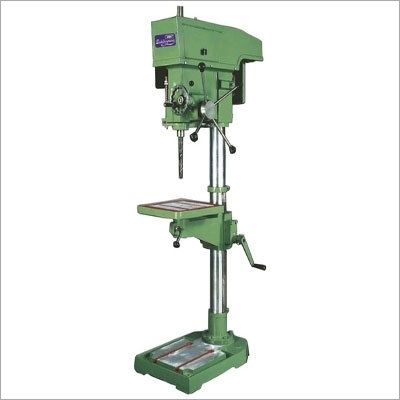

        40mm cap Pillar Drilling Machine

        40mm cap Pillar Drilling Machine
        40mm cap Pillar Drilling Machine
        Send Inquiry
        Product Code : SSC-3
        Brand Name : SIDDHAPURA
        Price And Quantity
        • Minimum Order Quantity
        • 1
        • Unit of Measure
        • Unit/Units
        Product Description

         Siddhapura sales corporation is the leading manufacturer of drill machines, we are one among the pioneers in the industry of drilling machines, our radial drill machines and pillar drill machines are highly appreciated for our low maintain cost and easy to operate the machine,

        our 40 mm pillar drill machine is almost latest and match all the requirements of industries application,

         40mm cap Pillar Drilling Machine

         Technical Specification :

        Machine Capacity

        40 mm

        Column Diameter

        130 mm

        Centre of Spindle to Column

        305 mm

        Distance Spindle to Table

        515 mm

        Distance Spindle to Base

        1040 mm

        Spindle Nose

        MT - 4

        Spindle Travel

        215 mm

        Range of Spindle Speed

        75 / 2070 RPM

        No. of Spindle Speed


        Range of power feed


        Table size

        435 x 435 mm

        Base size (machined area)

        490 x 470 mm

        V-Belt Section

        B - 62

        Overall Height with guard

        1830 mm

        Main Electrical Motor

        1.5 HP

        Wooden Case L x W x H

        1140 x 650 x 1950 mm

        Trade Information
        • Payment Terms
        • Cash Against Delivery (CAD), Cash on Delivery (COD), Cheque, Cash in Advance (CID)
        • Delivery Time
        • Week
        • Packaging Details
        • Main Export Market(s)
        • Asia, Australia, South America, Eastern Europe, Western Europe, Middle East, Africa, North America, Central America
        • Main Domestic Market
        • All India
