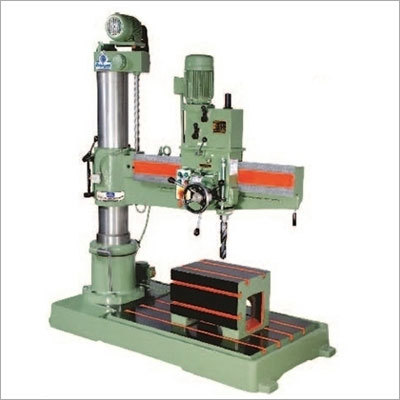

      40mm cap Radial Drilling Machines

      40mm cap Radial Drilling Machines
      40mm cap Radial Drilling Machines
      Send Inquiry
      Product Code : SMT-40-1200
      Brand Name : SIDDHAPURA
      Price And Quantity
      • Minimum Order Quantity
      • 1
      • Unit of Measure
      • Unit/Units
      Product Specifications
      • Spindle Speed
      • 90 to 1000 RPM
      • Condition
      • New
      • Product Type
      • Radial Drilling Machine
      • Automatic Grade
      • Automatic
      • Power Source
      • Electric
      • Color
      • Green
      Product Description



      40mm cap Radial Drilling Machines

      Technical Specification :

      Capacity :

      M.S.

      C.I.

      Drill Capacity

      40 mm

      40 mm

      Drill Head :





      1. Spindle nose



      MT 4

      2. Spindle Travel



      220

      3. No. of Spindle Speed



      8

      4. Range of Spindle Speed



      90 to 1000RPM

      5. Range of Power Feed

      mm / Rev.

      (2) 0.20-0.10

      Power :

      H.P.

      V. Belt

      Drilling Motor

      1.5

      1400KW/RPM

      Arm Elevating Motor

      1

      1400KW/RPM

      Shipping Size Approx LxWxH








      Working Range :





      1. Drilling Radius Max./Min.

      mm.


      2. Distance from column to Spindle Max./Min.

      mm.


      3. Box Table LX WXH

      mm.

      510x380x355

      4. Distance from Base to Spindle Max./Min

      mm.


      5. Diametere of Column

      mm.

      210

      6. Vertical Power movement of Arm

      mm.

      750

      Base Plate :





      1. L x W x H

      mm.

      1800x900x180 mm

      2. Working Surface

      mm.

      1200x750 mm

      3. No. of T-Slots

      mm.

      4/16 mm




      Trade Information
      • Payment Terms
      • Cash on Delivery (COD), Cash Advance (CA), Telegraphic Transfer (T/T), Days after Acceptance (DA), Delivery Point (DP), Cash Against Delivery (CAD), Cash in Advance (CID), Cheque
      • Supply Ability
      • as per customer requirement Per Week
      • Delivery Time
      • 1 Week
      • Packaging Details
      • GUNNY PACKING OR WOODEN CASE
      • Main Export Market(s)
      • Asia
      • Main Domestic Market
      • All India
      • Certifications
      • ISO 9001 : 2015,NSIC,CE CERTIFICATE
