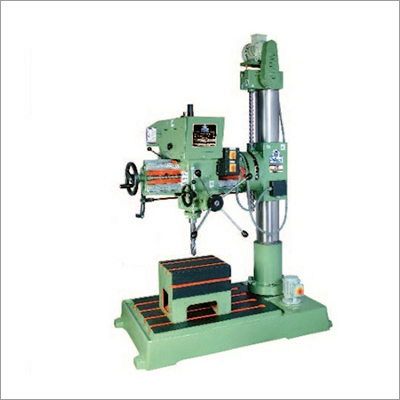

Automatic Feed Radial Drilling Machine

130000.00 - 140000.00 INR/Piece

Get a Price/Quote

Product Details:

Table Size 380 x 300 x 300
Spindle Speed 90- 1000 RPM
Dimension (L*W*H) 1250 x 1550 x 2000 Millimeter (mm)
Product Type Automatic Feed Radial Drilling Machine
Material Mild Steel
Computerized No
Weight (kg) 850 Kilograms (kg)
Click to View more

Request to Call Back Send Inquiry

Product Details
Product Description

Automatic Feed Radial Drilling Machine Price And Quantity

Minimum Order Quantity 1 Piece
Price Range 130000.00 - 140000.00 INR/Piece

Automatic Feed Radial Drilling Machine Product Specifications

Spindle Speed 90- 1000 RPM
Computerized No
Product Type Automatic Feed Radial Drilling Machine
Table Size 380 x 300 x 300
Material Mild Steel
Weight (kg) 850 Kilograms (kg)
Color blue
Dimension (L*W*H) 1250 x 1550 x 2000 Millimeter (mm)
Capacity 40 Ton/day

Automatic Feed Radial Drilling Machine Trade Information

Supply Ability 10 Piece Per Week
Delivery Time 1 Week
Packaging Details GUNNY PACKING OR WOODEN CASE
Main Export Market(s) Australia, North America, South America, Eastern Europe, Middle East, Central America, Asia, Western Europe, Africa
Main Domestic Market All India
Certifications ISO 9001 : 2015,NSIC,CE CERTIFICATE

Product Description

Automatic Feed Radial Drilling Machine

Specification SMTR-III G/A :

Drilling Capacity - 38mm to 40mm

DRILL HEAD

1.Spindle Nose - MT-4

2.Spindle Travel - 220

3.No of Spindle - 8

4.Range of Spindle Speed(RPM) - 90 to 1000RPM

5.Range of Power Feed - (2) 0.20-0.10

POWER

1.Main Motor (1.5 HP ) - 1400KW/RPM 1.55/2800 KW/RPM

2.Arm Elevating Motor (0.5 HP) - A-23 V-Belt

WORKING TABLE

L x W x H - 380 x 300 x 300

WORKING RANGE

1.Drilling Radius Max./Min. - 895/440

2.Max./Min.Dist.Column to Spindle - 850/275

3. Max.Drill Head Drive - 450

4.Max./Min. Base Plate to Spindle -930/230

5.Diameter of Column -168

BASE PLATE

L x W x H -760 x 1250 x 150

Working Surface -820 x 610

No. of T-Slot -4

DIMENSION

Overall Height 2000

Wooden Case(L x W x H) -1250 x 1550 x 2000

Overall Dimension are in mm and approximate only 75842
