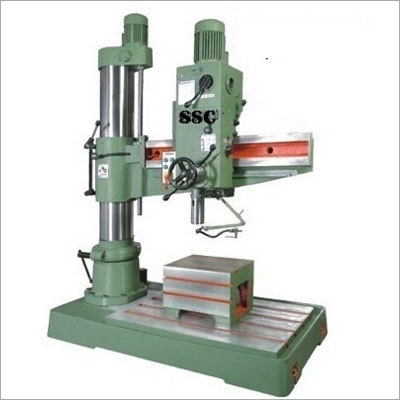

50MM CAPACITY ALL GEAR RADIAL DRILLING MACHINE

50MM CAP ALL GEAR RADIAL DRILLING MACHINE MODEL NO-SSC-50/1350

CAPACITY :

DRILLING (M.S)-50MM

DRILLING (C.I)-60MM

TAPPING (M.S)-24MM

TAPPING(C.I)-30MM

BORING (M.S) -90MM

BORING (M.S) – 100MM

DRILLING HEAD

SPINDLE TAPPER-MY-5

SPINDLE DIAMETER-85

SPINDLE TRAVEL-300

NO OF SPEED-8

RANGE OF SPEED-30 TO 1300

NO OF SPINDLE FEEDS-6

RANGE OF SPINDLE FEEDS-0.06 TO 0.5MM/REV.

ELECTRICALS

POWER SUPPLY-3PH,415V,50HZ

DRILL POWER-3HP

ARM ELEVATING MOTOR POWER-1.5HP

COOLANT PUMP MOTOR POWER-0.15HP

WORKING RANGE

COLUMN DIA.-255

DRILLING RADIUS MAX./MIN-1325/445

DISTANCE FROM COLUMN TO SPINDLE MAX/MIN.-1210/400

HORIZONTAL TRAVERSE-880

VERTICAL TRAVERSE-800

BASE PLATE WORKING AREA(LXW)-1220 X 770

BOX TABLE AREA(LXWXH)-600 X 500 X 500

DIMENSIONS

BASE PLATE(LXWXH)-1750 X 950 X 220

NO OF T-SLOT- 4

OVER ALL DIMENSIONS(L X W X H)-1800 X 1000 X 2450

WOODEN CASE SIZE(L X W X H)

APPROXIMATE WEIGHT-2500KG.
