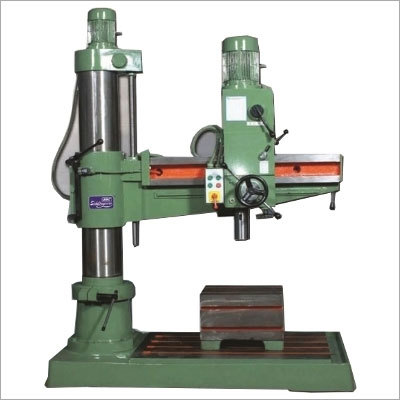

      ALL GEAR RADIAL DRILL MACHINE

      ALL GEAR RADIAL DRILL MACHINE

      300000-320000 INR/Piece

      Product Details:

      • Dimension(L*W*H) 800 X 1000 X 2450 Millimeter (mm)
      • Spindle Speed 30-1300 RPM
      • Table Size 600 X 500 X 500
      • Product Type 50 mm RADIAL DRILLING MACHINE
      • Computerized No
      • CNC Or Not Normal
      • Weight (kg) 2500 Kilograms (kg)
      • Supply Ability : 10 Piece Per Week
      • Click to view more
      X

      Price And Quantity

      • 1 Piece
      • 300000-320000 INR/Piece
      • 300000.00 - 320000.00 INR/Piece

      Product Specifications

      • 600 X 500 X 500
      • Normal
      • 30-1300 RPM
      • GREEN
      • 50
      • 800 X 1000 X 2450 Millimeter (mm)
      • 50 mm RADIAL DRILLING MACHINE
      • 2500 Kilograms (kg)
      • No

      Trade Information

      • 10 Piece Per Week
      • 1 Week
      • GUNNY PACKING OR WOODEN CASE
      • All India
      • ISO 9001 : 2015,NSIC,CE CERTIFICATE

      Product Description

      50MM CAP ALL GEAR RADIAL DRILLING MACHINE MODEL NO-SSC-50/1350

      CAPACITY:

      DRILLING (M.S)-50MM

      DRILLING (C.I)-60MM

      TAPPING (M.S)-24MM

      TAPPING(C.I)-30MM

      BORING (M.S) -90MM

      BORING (M.S) - 100MM

      DRILLING HEAD

      SPINDLE TAPPER-MY-5

      SPINDLE DIAMETER-85

      SPINDLE TRAVEL-300

      NO OF SPEED-8

      RANGE OF SPEED-30 TO 1300

      NO OF SPINDLE FEEDS-6

      RANGE OF SPINDLE FEEDS-0.06 TO 0.5MM/REV.

      ELECTRICALS

      POWER SUPPLY-3PH,415V,50HZ

      DRILL POWER-3HP

      ARM ELEVATING MOTOR POWER-1.5HP

      COOLANT PUMP MOTOR POWER-0.15HP

      WORKING RANGE

      COLUMN DIA.-255

      DRILLING RADIUS MAX./MIN-1325/445

      DISTANCE FROM COLUMN TO SPINDLE MAX/MIN.-1210/400

      HORIZONTAL TRAVERSE-880

      VERTICAL TRAVERSE-800

      BASE PLATE WORKING AREA(LXW)-1220 X 770

      BOX TABLE AREA(LXWXH)-600 X 500 X 500

      DIMENSIONS

      BASE PLATE(LXWXH)-1750 X 950 X 220

      NO OF T-SLOT- 4

      OVER ALL DIMENSIONS(L X W X H)-1800 X 1000 X 2450

      WOODEN CASE SIZE(L X W X H)

      APPROXIMATE WEIGHT-2500KG.


      SIDDHAPURA SALES CORPORATION
