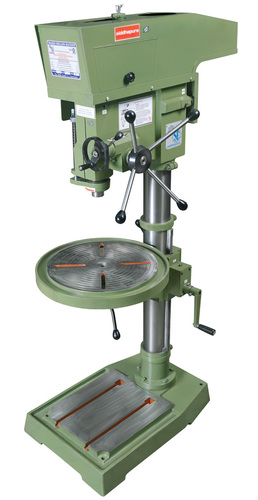

          Fine Feed Pillar Drilling Machine 25mm cap

          Fine Feed Pillar Drilling Machine 25mm cap
          Fine Feed Pillar Drilling Machine 25mm cap
          Send Inquiry
          Product Code : SSC-P-1
          Brand Name : SIDDHAPURA
          Price And Quantity
          • Minimum Order Quantity
          • 1
          • Unit of Measure
          • Unit/Units
          Product Description

          Fine Feed Pillar Drilling Machine 25mm cap

          Technical Specification :

          • Model No.:SSC-P-1
          • Drilling Cap. (in steel):25 mm
          • Column Dia.:87.60 mm
          • Centre of Spindle to table:250 mm
          • Max, Spindle to table:600 mm
          • Max, Spindle to base:980 mm
          • Taper in spindle:M.T.3
          • Spindle Travel:250 mm
          • No. of speed:8
          • Range of Speed:73 to 1800 RPM
          • Table size:375 mm Dia.
          • Base size (machined area):350 X 325 mm
          • Overall base size:625 X 420 mm
          • Overall height with guard:1675 mm
          • V-Belt selection:B-52
          • Elec. Motor-1440 RPm:1 H.P.
          • Wooden Case Size:650 X 500 X 1525 mm
          Trade Information
          • Payment Terms
          • Cash Against Delivery (CAD), Cash in Advance (CID), Cheque
          • Packaging Details
          • GUNNY PACKING OR WOODEN CASE
          • Main Export Market(s)
          • Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
