      Universal Radial Drilling Machine

      Universal Radial Drilling Machine
      Product Code : SMTR-II
      Product Description



      Universal Radial Drilling Machine

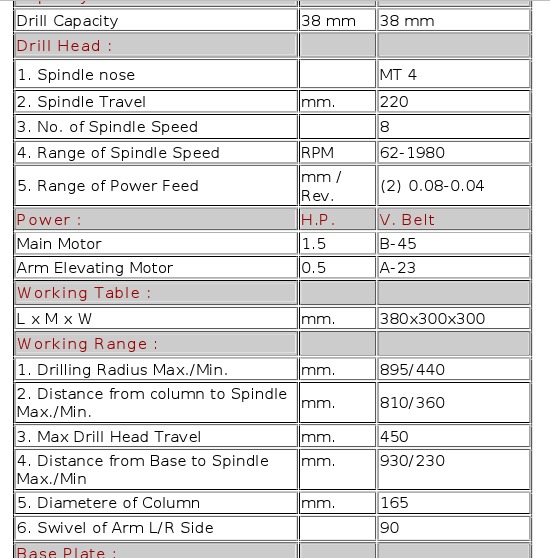

      Technical Specification :

      Description Capacity & Size
      Drilling Capacity In MS 38mm
      DRILL HEAD
      Spindle Nose MT-4
      Spindle Travel 220
      No. of Spindle Speed 8
      Rang of Spindle Speed (RPM) 62-1980
      Range of Power Feed (2) 0.08-0.04
      POWER V-BELT
      Main Motor (1.5 HP ) B-46
      Arm Elevating Motor (0.5 HP) A-23
      WORKING TABLE
      L X W X H 380 X 300 X 300
      WORKING RANGE
      Drilling Radius Max. / Min 895 / 440
      Max. / Min. Dist. Column to Spindle 810 / 360
      Max. / Min. Base Plate of Spindle 930 / 230
      Max. Drill Head Drive 450
      Diameter of Column 168
      Swivel of Arm L / R Side 90o
      BASE PLATE
      L X W X H 760 X 1250 X 150
      Working Surface 820 x 610
      No. of T-Slot 4
      DIMENSION
      Overall Height 2000
      Wooden Case (L X W X H ) 1250 X 1550 X 2000
