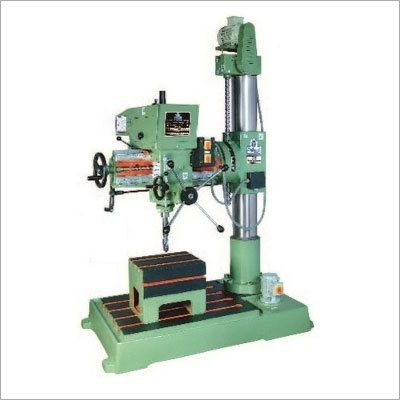

      Fine Feed Radial Drilling Machine - 38mm cap

      Fine Feed Radial Drilling Machine - 38mm cap
      Fine Feed Radial Drilling Machine - 38mm cap
      Product Code : SMTR-I
      Brand Name : SIDDHAPURA
      Price And Quantity
      • Minimum Order Quantity
      • 1
      • Unit of Measure
      • Unit/Units
      • Minimum Order Quantity
      Trade Information
      • Payment Terms
      • Cash Against Delivery (CAD), Cash in Advance (CID), Cheque
      • Packaging Details
      • GUNNY PACKING OR WOODEN CASE
      • Main Export Market(s)
      • Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
      Product Description

      Fine Feed Radial Drilling Machine - 38mm cap

      Technical Specification :

      Capacity :

      M.S.

      C.I.

      Drill Capacity

      38 mm

      38 mm

      Drill Head :





      1. Spindle nose



      MT 4

      2. Spindle Travel



      220

      3. No. of Spindle Speed



      8

      4. Range of Spindle Speed



      62-1980

      5. Range of Power Feed

      mm / Rev.

      (2) 0.08-0.04

      Power :

      H.P.

      V. Belt

      Main Motor

      1.5

      B-44

      Arm Elevating Motor

      0.5

      A-23

      Working Table :





      L x M x W

      mm.

      380x300x300

      Working Range :





      1. Drilling Radius Max./Min.

      mm.

      895/440

      2. Distance from column to Spindle Max./Min.

      mm.

      810/360

      3. Max Drill Head Travel

      mm.

      450

      4. Distance from Base to Spindle Max./Min

      mm.

      930/230

      5. Diametere of Column

      mm.

      165

      6. Swivel of Arm L/R Side

      mm.

      90

      Base Plate :





      1. L x W x H

      mm.

      925x600x120 mm

      2. Working Surface

      mm.

      820x610 mm

      3. No. of T-Slots

      mm.

      4/16 mm

      4. Overall Height

      mm.

      2000 mm

      Wooden case size L x W x H

      mm.

      1250x1550x2000 mm
